Flagler Corporation Flanger Machinery

Flanger Machinery

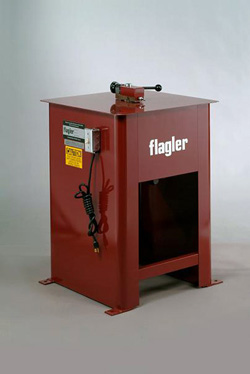

Flagler 20 Power Flanger Machine

Specifications:

Stand alone flanger to allow shops to free up their flanging attachment on their Pittsburgh machine, complete with flange follower.

Capacity: 20 Ga. and Lighter

Height of Flange: 7/32”

Speed: Approx. 25 feet per minute.

Motor:1/2 HP 115/1/60/1800 RPM .

Drive: Chain Drive .

Base: Arc Welded Steel. heavy Top Plate

Dimensions: 24" long, 24" wide, 38 5/8".
Feed Table Height 34 5/8"

Shipping Weight: Approximately 150 pounds

Flagler 18 Power Flanger Machine

Specifications:

Ideal for larger fitting work. This machine is built with a heavy duty cast iron gear housing with oil bath.

Capacity: 18-22 Ga.

Height of Flange: 1/4"

Speed: Approx. 18 feet per minute.

Motor: 1/2 HP 115/1/60/1800 RPM .

Drive: Vee Belt.

Base: Arc Welded Steel. heavy Top Plate

Dimensions: 24" long, 24" wide, 38 5/8".
Feed Table Height 34 5/8"

Shipping Weight: Approximately 185 pounds.

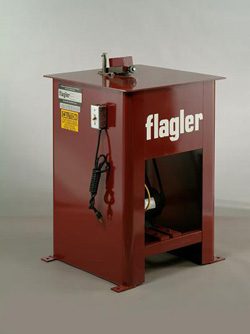

Flagler 16 Power Flanger Machine

Specifications:

Ideal for larger fitting work. This machine is built with a heavy duty cast iron gear housing with oil bath.

Capacity: 16-20 Ga.

Height of Flange: 3/8"

Speed: Approx. 18 feet per minute.

Motor: 3/4 HP 115/1/60/1800 RPM .

Drive: Vee Belt.

Base: Arc Welded Steel. heavy Top Plate

Dimensions: 24" long, 24" wide, 38 5/8".
Feed Table Height 34 5/8"

Shipping Weight: Approximately 185 pounds.

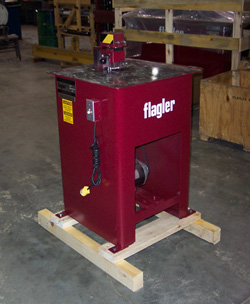

Flagler 20 Button Punch Flanger

Specifications:

For manufacturing fittings using the button lock seam rather than Pittsburgh 2 step operation, first the flange is formed then the buttons are punched. This machine is built with a heavy duty cast iron gear housing with oil bath and complete with Flange Follower.

Capacity: 20-26 Ga.

Height of Flange: 3/8" High

Speed: Approx. 18 feet per minute.

Motor: 3/4 HP 115/1/60/1800 RPM .

Drive: Vee Belt.

Base: Arc Welded Steel. heavy Top Plate

Dimensions: 24" long, 24" wide, 38 5/8".
Feed Table Height 34 5/8"

Shipping Weight: Approximately 250 pounds.

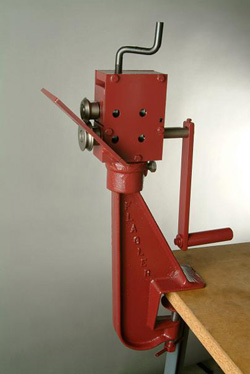

Flagler Hand Flanger Machine	Specifications:
	The Flagler Hand Flanger turns a 7/32" high flange on inside or outside radii as small as 1 3/4". Releasing top roll for the removal of a closed flange. This unit clamps to any shop bench and can be operated either left or right handed.
